SSE-Energio® Lead-Crystal

SSE-Energio® Lead-Crystal-Battery-Storage

Use Solarpower Day & Night and save money all day

Be your own Robinson Crusoe
Store power autonomously with the SSE Energio® battery storage system in stand-alone operation and consume as required.

Crystal-Quality made by SSE

With the SSE Energio® Lead Crystal battery storage, you consume the electricity produced by the PV system during the day and store the surplus electricity in the Battery-Storage. At night, when the sun is no longer shining, the energy stored in the batteries is called up.

We as SSE have the battery storage for your needs. Whether island solution or combination (On- and Offgrid). With us you will find the product which advances your project. We support you.

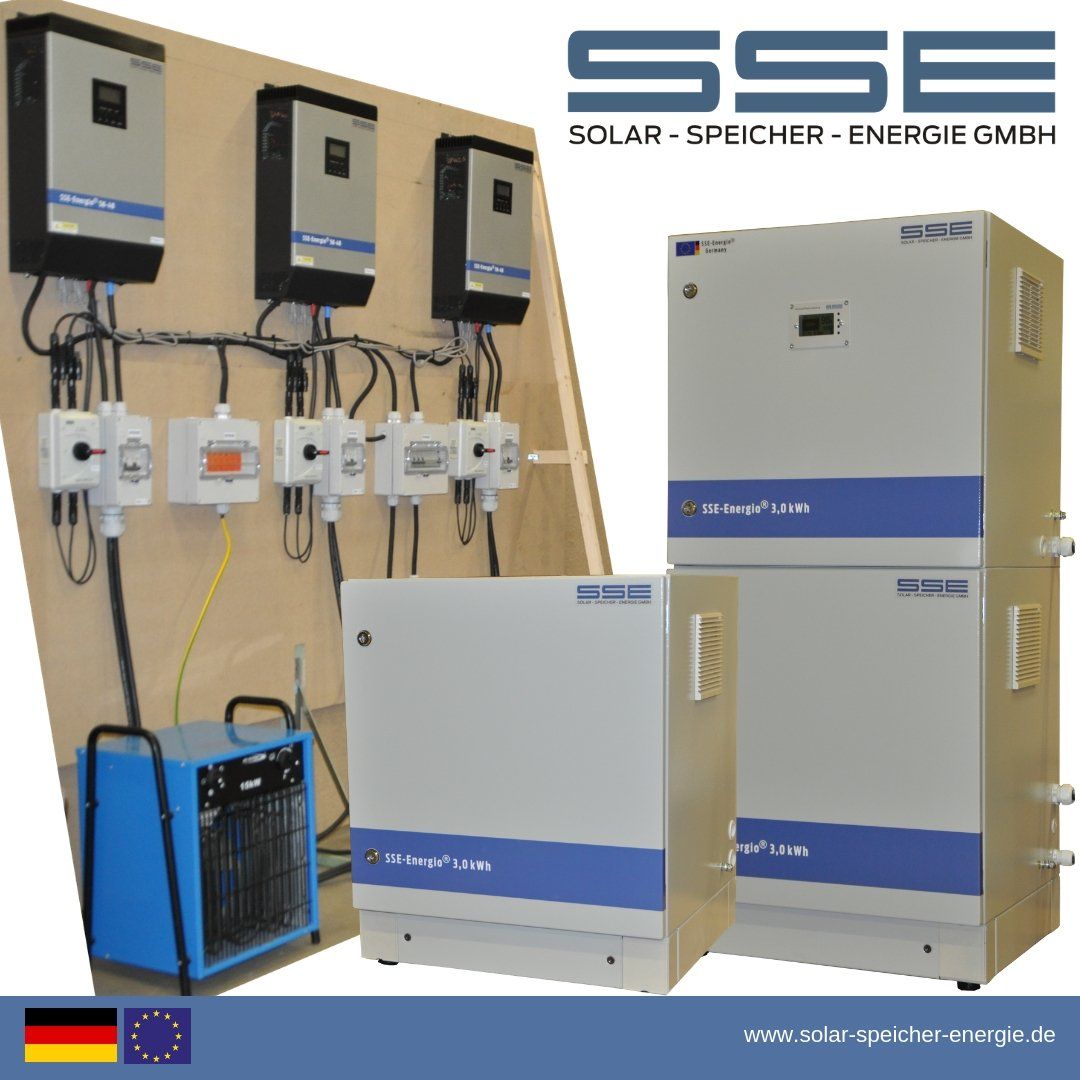

SSE-Energio® Crystal-Tower All-in-One

"Plug & Play"

Unique solution made by SSE-Energio®
  • 12kW / 15kVA AC output power
  • 3-phase system - three-phase current
  • 3x 3kWp DC input power
  • Mobile version on heavy duty rollers (base version also available)
  • Supplied completely prefabricated. "Plug & Play" principle
  • incl. SSE my.PV online monitoring
  • including SSE battery monitoring fixed installed in the housing
  • Extendable at any time
  • Island / off-grid system
  • UPS / emergency power function
  • Hybrid solutions available
  • Lead crystal technology - with all the advantages such as no dangerous goods, no risk of fire and explosion, no gases, long service life, high number of cycles, 99% recyclable, environmentally friendly materials.
Download PDF
Fig .: Dimensions (WxHxD): approx. 1000x1300x500mm -
SSE-Energio® 9kWh Lead Crystal Tower All-in-One 3-phase 12kW / 15kVA

SSE-Energio® Crystal-Tower

Master-Tower incl. SSE-Batterymonitoring

Our energy storage solutions are used in a variety of applications, including: Residentials (single and multi-family houses), Tiny / Mobile homes, SMEs (small and medium-sized enterprises), farms, hotels and IT solutions can be used. We as SSE offer our customers complete solutions to support the energy supply up to the most extensive power autarky.
With our SSE-Energio® Crystal Tower concept, even higher storage capacities can be realized, so that almost every project is possible.
  • Offgrid and hybrid applications possible (depending on project requirements)
  • modular expandable from 6kWh to 216kWh+
  • Extendable at any time (also retrospective - requirement: sufficient installation situation)
  • Simple installation / installation - "SSE modular concept" - supplied as standard and pre-assembled
  • proven and tested technology that works
  • Robust & Durable Components - Highest Industrial Grade
  • UPS / emergency power function
  • Can be combined with PV, Wind-Mirco systems, CHP
  • No risk of fire or explosion. No dangerous gases. No dangerous liquids.
  • Long life in SSE standard between 12-14 years (50% DOD)
  • 99% recyclable. Significantly lower environmental impact. ISO 14001 certified
Fig.: Dimensions (WxHxD): ca. 600x1320x500mm -
SSE-Energio® 6kWh Lead-Crystal-Tower
ReDesign - SSE-Energio® - Lead-Crystal-Battery-Storage
  • suitable for outdoor installation
  • integrated battery fuse
  • integrated battery monitoring display
  • lockable on request
  • per tower up to 9kWh (usable / effective) storage capacity. Modularly expandable
  • "Made in Germany"
  • Hybrid- or Offgrid-application
  • available as UPS / emergency power storage - switchover of 10ms - no registration necessary
Fig.: ReDesign SSE-Energio® 9kWh Lead-Crystal-Tower
2x3kWh - SSE-Lead-Crystal-Tower 2x3kWh (50%DoD)

SSE-Energio® Crystal-Cube-Basic+

SSE Energio®Crystal 3K-24 - 1,5kWh+

Basic:
  • 1-phase inverter 3KVA (1x3kVA) with 1.5kWh storage expandable to 3.0kWh+ storage (SSE standard 50% DoD)

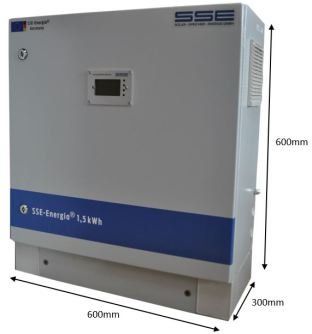

approximately Dimensions - 1,5kWh SSE-Energio®-Crystal-Battery-Storage Master

SSE Energio®Crystal 5K-48 3,0kWh+

Cube:
  • 1- to 3-phase inverter 5KVA (1x5kVA) with 3.0kWh storage expandable to 6.0kWh+ storage (SSE standard 50% DoD)

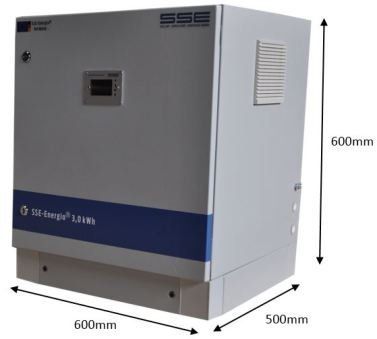

approximately Dimensions - 3.0kWh SSE Energio® Crystal Battery-Storage Master

SSE-Energio® - Basic 1,5kWh

SSE-Energio® - Cube 3.0kWh

Capacity

Extension

Capacity

Extension

ab 1,5kWh (50% DoD)
Modular expansion in 1.5kWh steps
from 3,0kWh (50% DoD)
modularly expandable in 3.0kWh increments

full cycles

Lifetime at 50% DoD

full cycles

Lifetime at 50% DoD

approx. 3200
about 12-14 years
approx. 3200
about 12-14 years

mass

Dimensions

mass

Dimensions

Master 1,5kWh = ca. 100kg
(WxHxD) = approx. 600x700x300mm
Master 3,0kWh = ca. 190kg
(WxHxD) = approx. 600x700x500mm

phases

Installation

phases

Installation

1 to 3 phase inverter
Floor - stable height adjustable feet
1 to 3 phase inverter
Floor - stable height adjustable feet

Characteristics

  • unbeatable price and performance ratio
  • Ideal as an "island system" / Offgrid
  • Hybrid applications
  • 1 to 3-phase system available
  • MPPT solar charge controller incl. UPS inverter
  • 24V & 48V systems available
  • Modular concept / expandable as needed and project requirements
  • compact design
  • Industrial quality - IP24 protection / outdoor installation possible
  • sophisticated, reliable and environmentally friendly battery technology (up to 99% recyclable)
  • SSE Energio® battery monitoring
  • Optional: SSE-Energio®-Onlinemonitoring
  • long life of the batteries (about 12 years)
  • UPS systems function (off-grid / 10ms switchover time) - suitable for IT applications
  • easy installation
  • low-maintenance system
